FK816 double-sided paper box corner flat box labeling machine for single side sticker

Name: FK816 doublesided paper box corner flat box labeling machine for single side sticker
Brand: FK SPEEDA
Price: 6 USD

China FK816 double-sided paper box corner flat box labeling machine for single side sticker wholesale

Type : LABELING MACHINE

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other

Showroom Location : Viet Nam, Indonesia, South Korea, None

Condition : New

Application : Food, Beverage, Commodity, Chemical, Machinery & Hardware, Machine

Packaging Type : case

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V(Can be converted)

Place of Origin : Guangdong, China

Brand Name : FK SPEEDA

Dimension(L*W*H) : 1100 * 700 * 1450(mm)

Weight : 160 KG

Warranty : 1 Year

Key Selling Points : High Productivity

Machinery Capacity : 40 ~ 80(pcs/min)

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : PLC, Motor, Other

Product Name : FK816 Automatic Corner Seal Labeling Machine

Tolerance(mm) : ±1

Labeling speed(pcs/min) : 40 ~ 80

Range of Application(mm) : L: 40 ~ 250; W: 40 ~ 200; H: 10-100mm;Can be customized

Machine size(mm) : 1100 * 700 * 1450

After-sales Service Provided : Engineers available to service machinery overseas

Service : Customization;One Year Warranty

Specific Use : Flat surface labeling for box,card,pouch,bag labeling

After Warranty Service : Spare parts

Label Type : Adhesive sticker

Packaging Details : 1 set/ Polywood case

Port : Shenzhen

Supply Ability : 1000 Set/Sets per Month

Price : $6,500.00/sets 1-1 sets

MOQ : 1

Contact Now

Product Overview

FK816 double-sided paper box corner flat box labeling machine for single side sticker

FK816 Automatic double corner labeling machine

This machine is specially developed for box sealing label. Including automatic conveyor belt, can automatically transport products, can be single-machine production or connected to the front production line (according to the characteristics of the product itself, can choose to increase the automatic feeding device, to achieve the automatic feeding or receiving of the product,save labor). According to the labeling position of the box, the label head can be placed on the side or the upper plane, which can be matched in different ways to meet the requirements of turning the box to the side, turning the box to the side, or labeling the opposite side. Choose your equipment well.

Working Principles Of Sticker Labeling Machine

Core working principle:

The sensor detects the passing of the product and sends back a signal to the labeling control system. At the appropriate position,the control system controls the motor to send out the label and attach it to the labeling position of the product.The product flows through the labeling device, the label is rolled over, and a label The attaching action is completed.

Operation process:

Put products—>product delivery (automatically realized by equipment)—>labeling (automatically realized by equipment)—>collect labeled products.

PRODUCT SPECIFICATIONS

Parameter	Data
Label Specification	adhesive sticker, transparent or opaque
Labeling Tolerance	±1mm
Capacity(pcs/min)	40 ~120
Suit bottle size(mm)	L:40~400 W:20~200 H:0.2~150;Can be customized
Suit label size(mm)	L: 15-100; W(H): 15-130
Machine Size(LWH)	≈19306951390 (mm)
Pack Size(LWH)	≈19507301450 (mm)
Voltage	220V/50(60)HZ;Can be customized
Power	1030W
N.W (KG)	≈180.0
G.W(KG)	≈330.0
Label Roll	ID: Ø76mm;OD:≤260mm
Basic Application	Top&Bottom side labeling for all kinds of flat/slightly arc surface labeling, such as flat bottle, cosmetics boxes, plastic cap labeling, etc. Widely used in food, cosmetic, and other industries.It can work alone or connect to production line. Date printer can be added to print production date,batch lot and expiry date while labeling. Support customization.

PRODUCT CONFIGURATION

Application

Mobile phone box seal label, cosmetics set box seal label, double-side seal label of toy box , double-side seal label of , bank card K box, etc.; Optional color belt marking machine, to print the production date on the label and other functions,marking code labeling synchronously, saving the process. Ink jet printer or laser jet printer can be used to print the production date on the product.

Guangdong Fineco Machinery Group Co., Ltd

Guangdong Fineco Machinery Group Co.,Ltd. is a professional large-scale manufacturer of packaging machine,Integrating development and production together, Our main products include High-accuracy labeling machine, filling machine,capping machine,shrinkage machine, self-adhesive labeling machine and related equipment. Located in Chang'an Town, Dongguan City,Guangdong Province,China. we enjoy convenient land and air transportation.And with offices in Jiangsu Province, Shangdong Province,Fujian Province and other regions.

Currently,Fineco is already exported to America,France,Australia,Germany and 50 other countries and regions. Our company has always focused on research,development and innovation,has obtained a number of patent certificates,and be rated as Chinese "Hight and New Technology Enterprise'in 2017 .we also attained ISO9001 and CE certifications.

Fineco regards "Reasonable Prices,Efficient Production and Good After-sales Service "as our tenet.We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.

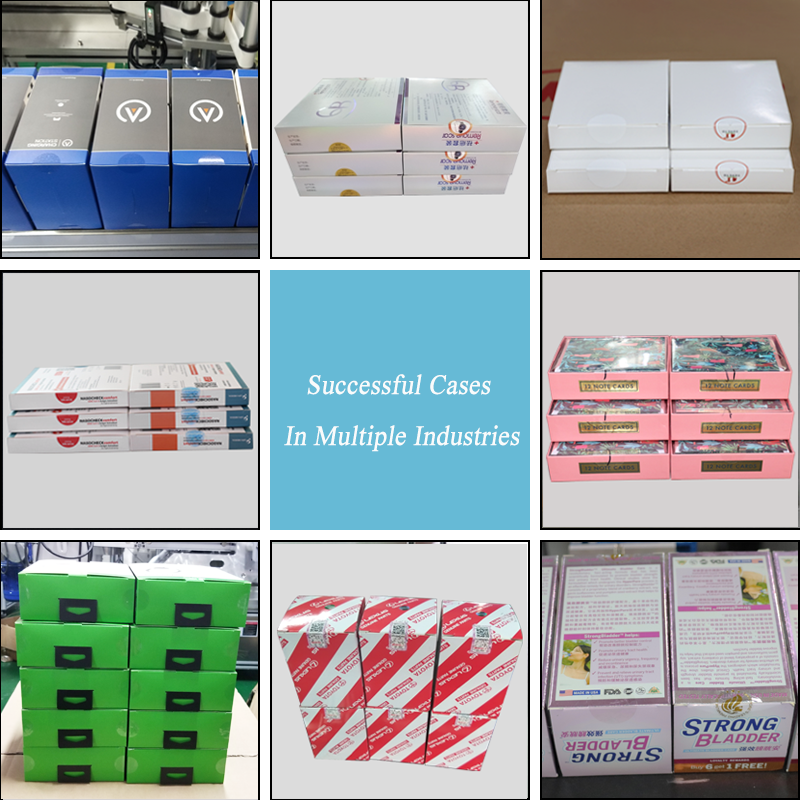

Successful Cases
